Bathroom Renovation Stage 9

02/09/2010

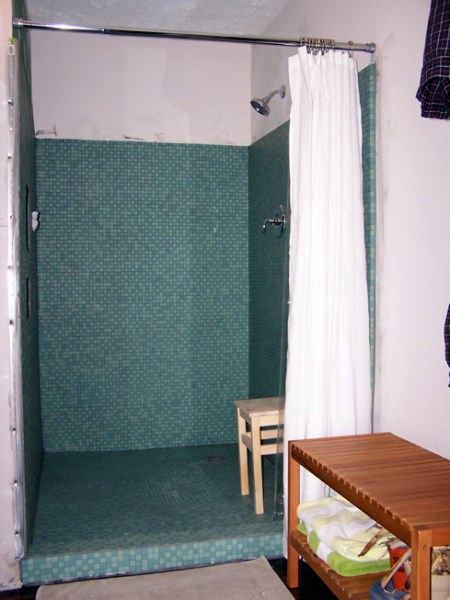

The shower is DONE!!

Well, 95% done anyway. We’re eventually going to install a 2nd shower head—a rain shower mounted to the ceiling. But that’s a little further down the priority list. Most importantly, the shower is now functional.

Sunday we went shopping for shower curtains and it was SO much more fun than shopping for thin set and grout and tile sealer.

Since we don’t have the 2nd shower head yet, we have some plastic bags stuffed into the hole where the controls will go. Classy, huh?

Despite the plastic bags and the yet to be painted walls, that first long hot shower on Sunday night was so glorious!

Tomorrow you’re welcome to give your opinion on our paint color choices.

Catch up with our bathroom renovation progress:

Bathroom Renovation Stage 1

Bathroom Renovation Stage 2

Bathroom Renovation Stage 3

Bathroom Renovation Stage 4

Bathroom Renovation: Tiling!

Bathroom Renovation Stage 5

Bathroom Renovation Stage 6

Bathroom Renovation Stage 7

Bathroom Renovation Stage 8

Concrete Shower Pan Goes Down Smooth

Advertisements

Concrete Shower Pan Goes Down Smooth

01/26/2010

Last weekend we tackled the most intimidating part of the bathroom renovation (in my mind, at least): pouring the concrete shower base. I’ll just show what we did through pictures. And of course I use “we” very loosely here.

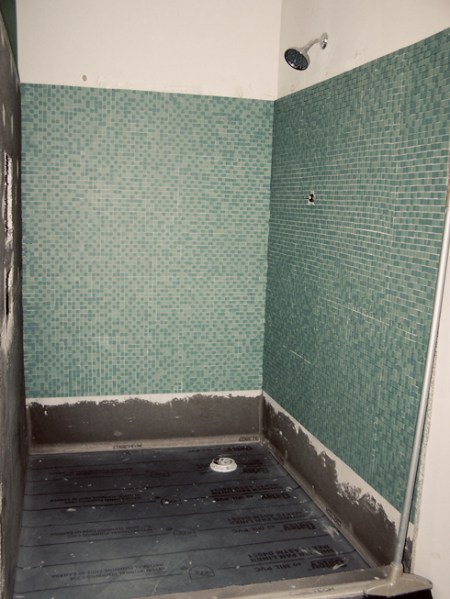

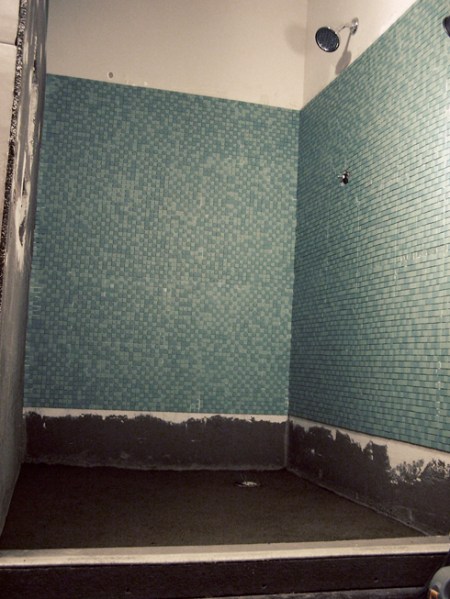

Shower all cleared out and ready to go.

Mixing up the concrete mix and water in our pitiful, rusty old wheel barrel. (See the broken wood handle?) I was going to do this part but it turns out my arms are too weak. Each bag of mix was 60 lbs dry.

I prefer to watch this guy in action anyway. I’m excellent moral support.

First bucket full of concrete gets placed. That float is named the Task Force.

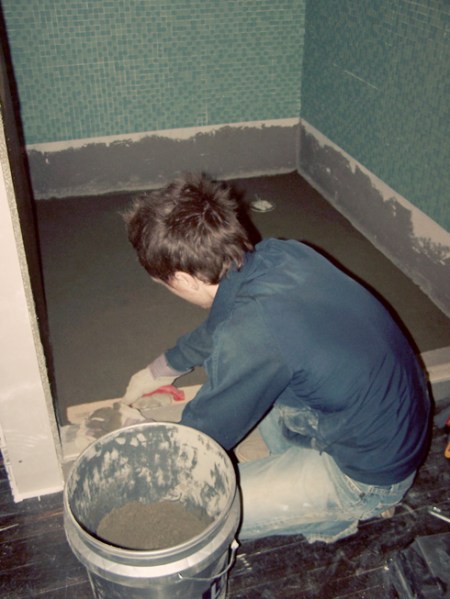

Second bucket down. Creating a slight slope toward the drain was very tedious. And important. Jason and his task force can handle it.

The consistency is like wet sand. Not as liquidy as I had imagined.

Four bags/bucketfuls down. 240 lbs. More of the very meticulous smoothing and creating a slight grade toward the drain.

Some days I am very grateful to be married to a perfectionist. Another half a bag to finish it off and get that slope just right. (4.5 bags of sand mix, 270 lbs, 4’x5′ base at 1-1.5″ thick in case you want details.)

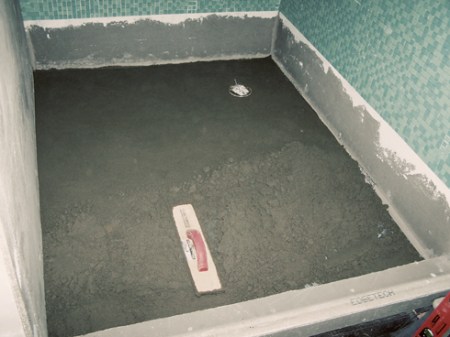

All done. Just needs 24 hours to dry. Phew! The whole process only took 3 hours but was very labor-intensive. I’m so glad it’s done. Thank God it all went smoothly. Now on to finishing the rest of the tiling … another update coming soon. I HOPE!

Keeping up with our progress?

Bathroom Renovation Stage 1

Bathroom Renovation Stage 2

Bathroom Renovation Stage 3

Bathroom Renovation Stage 4

Bathroom Renovation: Tiling!

Bathroom Renovation Stage 5

Bathroom Renovation Stage 6

Bathroom Renovation Stage 7

Bathroom Renovation Stage 8


Bathroom Renovation Stage 8

01/21/2010

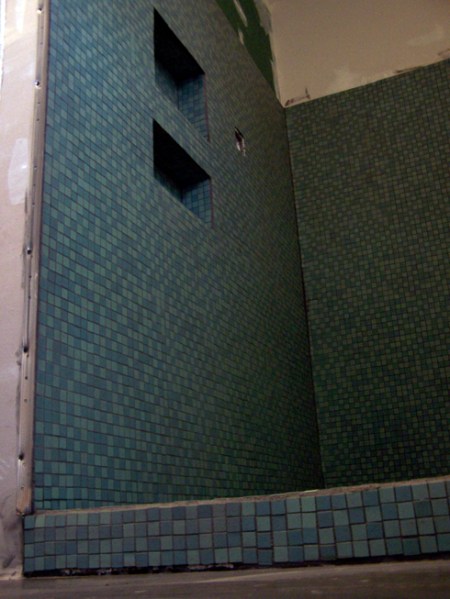

Tile is officially HALF done! Yay! We’ve been working hard on it and our goal is to finish the shower this month. (Sorry for the pieced together photos. Couldn’t get it all in 1 shot.)

We started putting drywall up to close off the laundry area with some leftover pieces from another project.

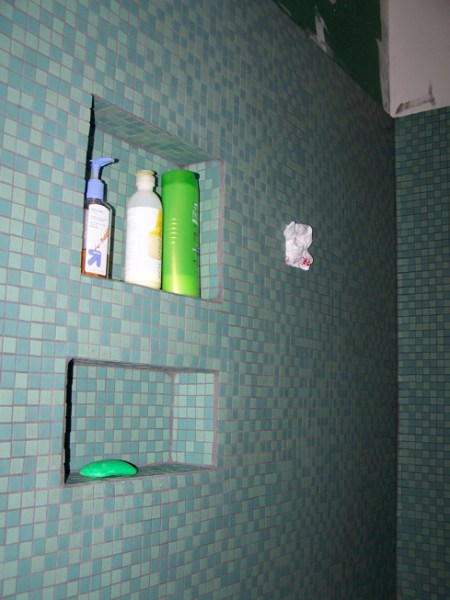

We designed built-in shelves into one side of the shower wall. In order to finish them with cement board so we can tile, we had to put drywall up on the laundry room side.

Jason bought the concrete for the shower pan today. Saturday is the day we mix and pour and level and pray. I’ll try to remember to keep my camera handy during the process.

Phew! We’ve come a long way! Need to catch up?

Bathroom Renovation Stage 1

Bathroom Renovation Stage 2

Bathroom Renovation Stage 3

Bathroom Renovation Stage 4

Bathroom Renovation: Tiling!

Bathroom Renovation Stage 5

Bathroom Renovation Stage 6

Bathroom Renovation Stage 7


Bathroom Renovation Stage 7

01/06/2010

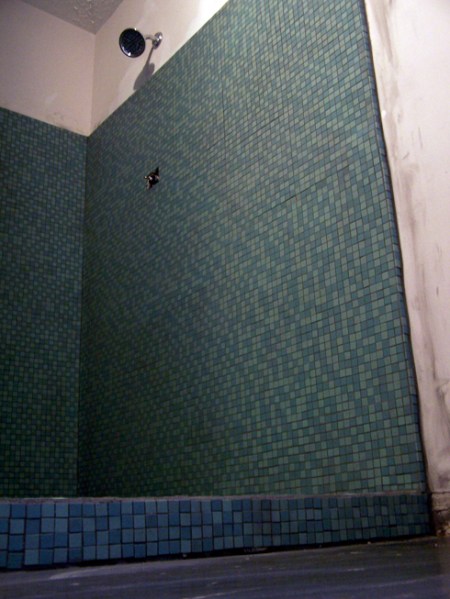

Our master bathroom makeover has been slow moving, mostly because of the busyness of the holidays. But now we’re back at it full steam with a goal of finishing the shower this month. It’s going to be a challenge since we’re averaging about 4 sq. ft. an hour with these little .75″ unglazed porcelain tiles. One wall is almost done.

We’ve got a good system going now where I pop half the tiles off of each sheet in a random pattern at about the same pace as Jason can stick them up on the wall. If I crop out the unfinished parts and you use your imagination with the grout (we’re thinking gray) this picture gives a pretty good idea of the finished look:

Lost? Here’s the process up to now:

Bathroom Renovation Stage 1

Bathroom Renovation Stage 2

Bathroom Renovation Stage 3

Bathroom Renovation Stage 4

Bathroom Renovation: Tiling!

Bathroom Renovation Stage 5

Bathroom Renovation Stage 6


Bathroom Renovation: Tiling!

11/18/2009

I’m not calling this a stage because it’s not really a stage change in the bathroom. The tile arrived over the weekend and on Monday, Jason and I decided to put up 2 square feet to see how it looks. We have 2 different colors of .75″ x .75″ tile that come in 1 sq ft sheets and it’s up to us to pop off 50% of the tiles (112 per sheet) to make a random pattern.

Let me just say that this process sucks. It takes a lot longer than I anticipated and the mesh is like sandpaper on my fingers! But I know it will all be worth it. Jason and I are really pleased with how it looks once the 2 colors are randomized together:

It took us 20-30 minutes to make 2 sq ft. So … multiply that by 60 (120 sq ft total) and it looks like we can plan on 20-30 hours of tile popping. That’s not counting installing the tiles on the wall.

… Putting each tile we popped off back into the other color sheet …

… And making sure they’re all straight and flush. But it’s going to be SOOOOO worth it! I can’t wait to see how it’ll look when the whole shower is done.

Meanwhile we still have a couple of sheets of concrete board to hang and the shower pan to pour. Once we realized how long the tile is going to take we figured we’d better get started right away so we can takes breaks to do other parts of the process.

Yes, I know we’re crazy. Did I mention we got a really good deal on the tile?
